Electromagnetic and pneumatic benchtop marking machines — INSTRUMARK

This touch-screen based machine is available in electric and pneumatic formats fitted with an easy to operate, multilingual user-friendly interface. It also offers the flexibility to connect to a PC with Ethernet. Mounted on a relatively tall stand to accommodate taller products and 7 different stylus attachments can be used on this machine covering wide range of industrial applications for component markings.
Versions: Electric and Pneumatic Versions available.
Marking Area: 120mm x 100mm
Stands: Manual Stands in light and heavy duty, Motorized Economy and Fast Z Stand.
Machine Working: 2 in 1 working with touch screen and PC with Ethernet cable.
Power Supply: Separate 24VDC 5A Power Adapter
Storage: Unlimited Storage Capacity.
Force Adjustment: 9 different force codes to adjust marking force.
2D Barcodes: Datamatrix Marking is Possible.

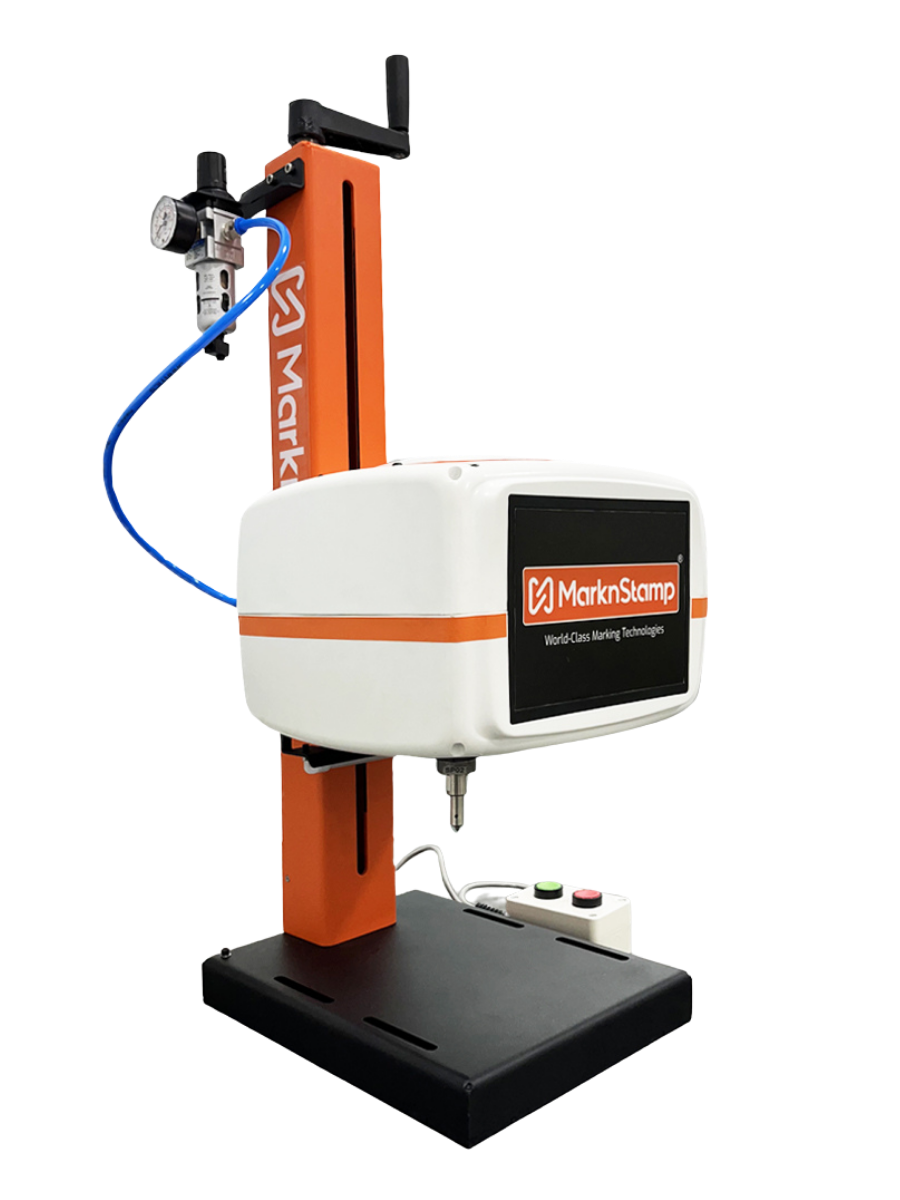

The rugged workhorse of marking, the MNS PC machine is available in pneumatic and electro-magnetic versions.
Mounted on a large stand the machine comes with standard 2 axis up-gradable to 3-4 axis. It can be connected to Ethernet or Wifi for seamless working and delivers accurate and deep permanent markings suitable for various applications as well as reading and printing bar codes. It integrates easily with other machines and devices and is flawless in marking alpha numeric applications.
Versions: Electric and Pneumatic Versions available.
Marking Area: 120mm x 100mm
Standard Stylus: PH-16 for Continuous Marking or LP-10 for dotted Marking.
Pin Vibrations: Both Dot peen and Vibro peen available.
Power Supply: Separate 24VDC 5A Power Adapter
Inputs: 5 Inputs for automatic design selection.
Outputs: 2 Outputs, end of marking, machine ready for marking & error.
2D Barcodes: Datamatrix & QRCode Marking Possible.

This touch-screen enabled table top machine is available in electro-magnetic and pneumatic formats fitted with a user friendly interface. It can easily mark surfaces for logos standard alphanumeric marking in straight, angled and circular pattern and comes with default 2 axis convertible to 3-4 axis. It also offers the flexibility to connect to a PC over an Ethernet and integrate with other machines and devices as well as scan and print bar codes.
Versions: Electro-magnetic and Pneumatic Versions available.
Marking Area: 120mm x 100mm
Machine Working: 2 in 1 working with touch screen and PC with Ethernet cable.
Touch Pen: Hard touch pointer attached by chain.
Power Supply: Separate 24VDC 5A Power Adapter
Inputs: 5 Inputs for automatic design selection.
2D Barcode: Datamatrix & QRCode Marking.
Power Supply: Separate 24VDC 3A Power Adapter for Pneumatic and 24V 5A Power Adapter for Electric version. 24V 10A Power Adapter for Auto-Touch Accessory use with Electric version.

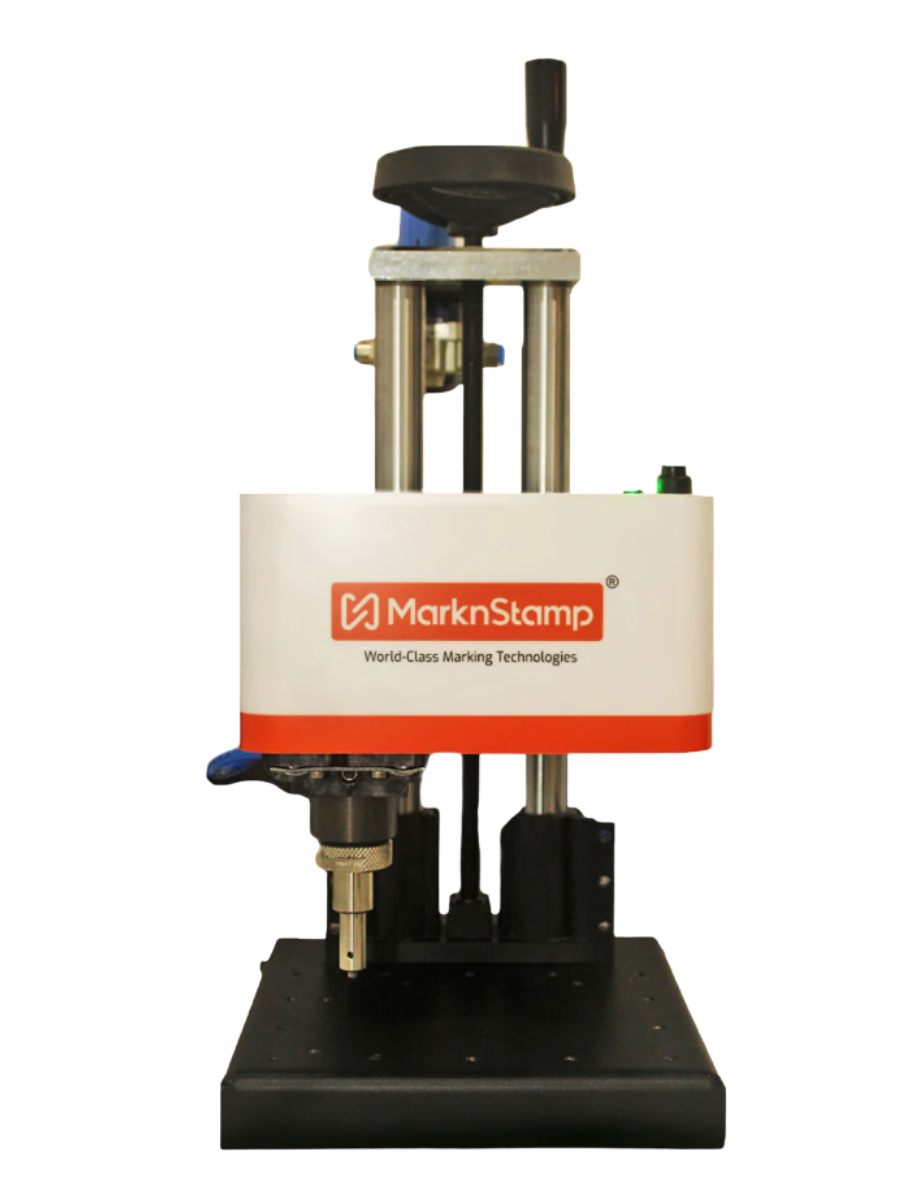

The Simple Marker is a sturdy pneumatic machine with large marking window equipped with a holding stand of 150mm and a multi colour LED for indication of marking area. The machine can be connected via Wi-Fi and a seamless connectivity to mobiles / tablets / laptops at the click of a button.
Robust machine and holding stand
Marking Window Extender
Standard holding stand of 150mm height
Communication over Wifi hotspot of machine, no other Wifi network required
Use standard Mobile or Tablet or Laptop for operation
Simple to use with one button for all operations
Use the standard 19V 1.8A adapter for power
Drawing for accessories available for download
Multicolor LED to indicate machine status

Electro Magnetic & Pneumatic Bench Top Marking Machines
