Portable Marking Machines to Streamline Your Identification Needs

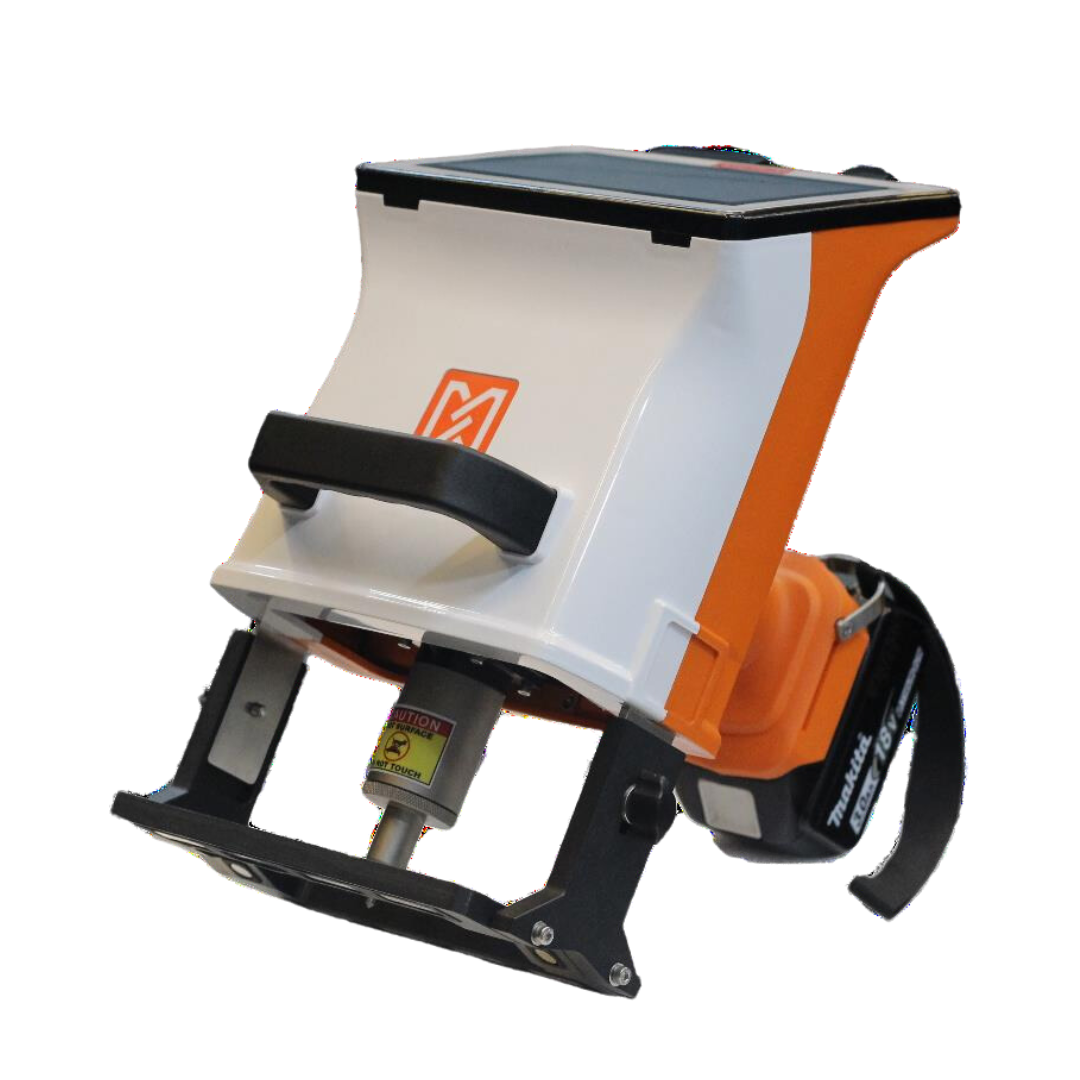

MNSB - TC
Portable Battery Operated Touch Screen

  • The light weight touch screen hand held dot peen marking machine is the most compact marker for precision marking in 9 different forces powered by a Li-ON battery for long working hours. Its touch screen operated so no need for PC or tablet. A truly portable solution.

  • Type of Machine: Hand Held Cordless with Battery

    Marking Area: 100mm x 30mm

    Battery:Powerful Lithium - Battery for up to 8 hours of normal working

    Force of Marking: 9 different forces are set to adjust depth

    Software availability: Touch Screen

    Machine Warranty:1 year

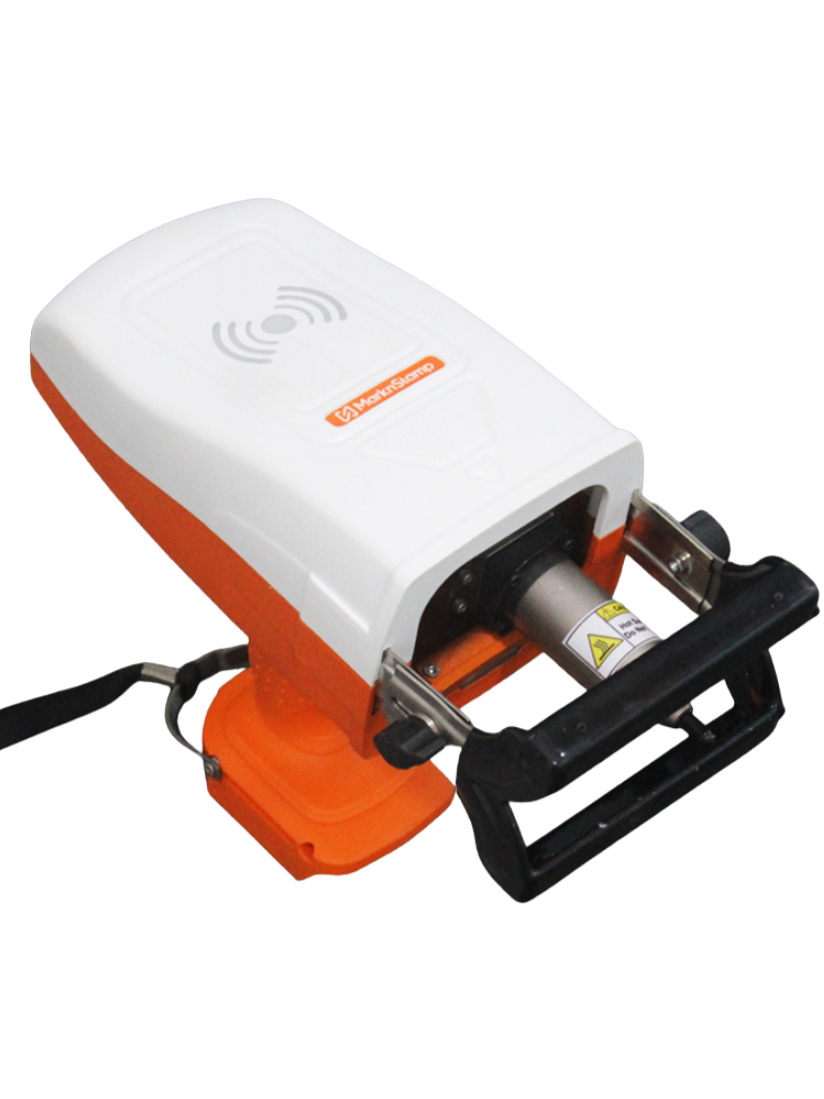

MNSB - 53
Portable Battery Operated Wifi Enabled

  • The light weight hand held dot peen marking machine is the most compact marker for precision marking in 9 different forces powered by a Li-ON battery for long working hours. It can be table mounted and operated with a mobile app making it an economic machine and a favourite with the customers.

  • Type of Machine: Hand Held Cordless with Battery

    Marking Area: 50mm x 30mm

    Battery:Powerful Lithium - Battery for up to 8 hours of normal working

    Force of Marking: 9 different forces are set to adjust depth

    Software availability: On Android, IOS and Windows Devices

    Machine Warranty:1 year

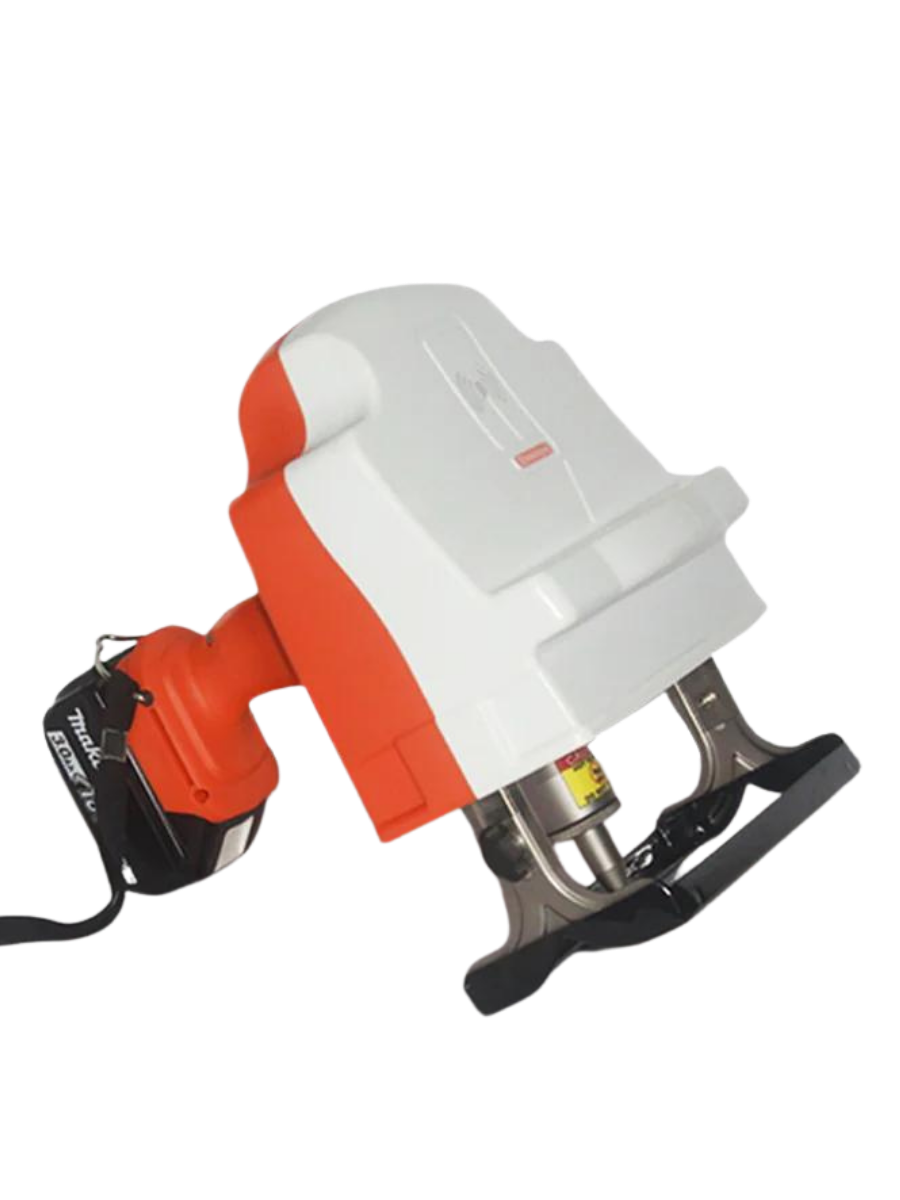

MNSB -155 Portable
Battery Operated Wifi Enabled

  • The robust variant of the MNSB 53, this machine is suitable for marking ‘difficult to access’ or harder surfaces in industrial marking. The user-friendly machine comes with a drop resistant body complete with the white and orange brand colours and LED lighting to illuminate the marking area. Armed with its multi user interface, the MNSB 155 is available in electric and battery-operated versions complete with a MNSB launcher application.

  • Type of Machine: Hand Held Cordless with Battery

    Marking Area: 150mm x 50mm

    Battery:Powerful Lithium - Battery for up to 8 hours of normal working

    Force of Marking: 9 different forces are set to adjust depth

    Software availability: On Android, IOS and Windows Devices

    Machine Warranty:1 year

Hand Held Deep Marking Pneumatic Machine

  • Pneumatic Dot peen technology is characterized by long strokes of stylus for marking on parts with surface irregularities up to 12mm and depth up to 1mm on soft steel parts. The Pneumatic Vibropeen technology is ideally suited for fast continues line marking up to 5 characters per second speed.

    The robust built hand-held markers are constructed for deep marking surfaces. Special front holding attachments and permanent magnets for superior grip as well as hands free operations.

  • Marking Area: 150mm x 50mm

    Versions: Pneumatic version with high depth valves

    Standard Stylus:LP-25

    CNC Controller: 2 Axis 7″ Touch screen Controller

    Customisation: Component holding or resting attachment can be customized.

    Weight of Machine: 4.8kg with front fixture (4.5kg without fixture.)

Hand Held Pneumatic & EM Marking Machine

  • The portable marking machine (pneumatic) is available in 3 different sizes and in electric versions too. The X and Y axis are linear for consistent depth and the aluminium handle makes working smoother. Several stylus assemblies and cable lengths make these machines suitable for diverse industrial applications. The machines can be adapted to its table top version and the front fitted trays makes them user friendly.

  • Standard Marking window: 80mm x 30mm

    Weight: 3.2kg with front fixture (2.8kg without fixture.)

    Standard Stylus:LP‐10 for Steel OR LP‐06 for Al Marking (P) / EM‐01 Stylus.

    CNC Controller: 2 Axis 7″ Touch screen Controller

    Connection type: Military grade secure connection to the controller.

    Versions: Pneumatic & Electric versions.
